What Is a Lube Spin-On Filter and How It Works

A missed oil filter change can turn routine maintenance into an expensive engine problem. If you are comparing replacement filters for a car, pickup, work truck, tractor, or fleet unit, you may see the term and ask: what is a lube spin on filter? It is a self-contained engine oil filter that threads directly onto a mounting base. Its job is to remove harmful contaminants from the engine oil while allowing the oil to circulate where the engine needs it.

The word lube means lubricating oil, not a separate type of fluid. A lube spin-on filter is simply an oil filter designed with a sealed metal canister, internal filter media, seals, and valves. When it reaches the end of its service interval, you remove the complete filter and install a new one.

What Is a Lube Spin-On Filter?

A lube spin-on filter is one of the most common service filters used on gasoline and diesel engines. The filter has threaded holes in its base plate that screw onto the engine's oil filter adapter. A rubber gasket around the base seals the filter against the mounting surface.

Once the engine starts, the oil pump pushes oil into the filter through small inlet holes around the threaded center opening. The oil passes through the filter media, which captures dirt, carbon, metal particles, and other debris. Cleaned oil then exits through the center tube and returns to the engine's lubrication system.

This design is popular because replacement is fast and straightforward. There is no separate housing to open and no loose element to handle. For a shop servicing several vehicles or a fleet operator keeping up with scheduled maintenance, that saves time. For a DIY owner, it makes a standard oil change more manageable.

Not every engine uses a spin-on design. Some newer vehicles and many European applications use cartridge oil filters. A cartridge filter has a replaceable element that installs inside a permanent engine-mounted housing. Neither design is automatically better in every application. The correct choice is the one specified for the engine.

How a Lube Spin-On Filter Protects an Engine

Engine oil does more than make parts slippery. It helps control friction and wear, carries heat away from components, suspends contaminants, and supports hydraulic systems such as variable valve timing on many modern engines. Oil can only do that work well when it stays reasonably clean and flows at the proper rate.

A spin-on filter contains pleated filter media that creates a large filtration area inside a compact canister. As oil moves through the media, the media traps particles that could score bearings, wear timing components, damage oil-pump parts, or circulate through sensitive passages.

The filter must balance two jobs: catch contaminants and maintain oil flow. Media that is too restrictive can limit flow, particularly when oil is cold. Media that does not filter effectively may allow more damaging material to keep circulating. This is why using a quality, application-correct replacement filter matters more than choosing a filter based on can size alone.

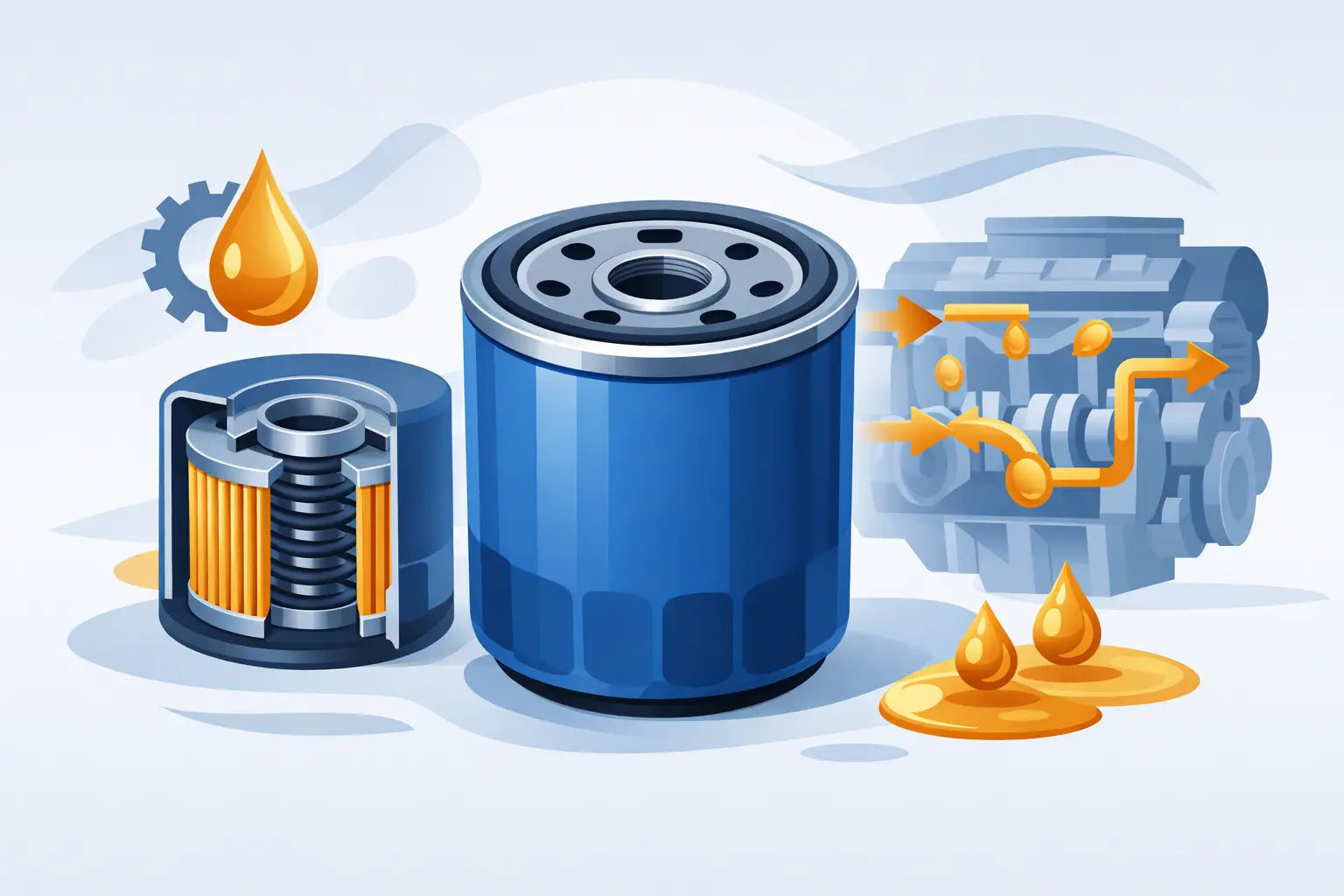

The Internal Parts That Matter

The metal canister is the part you see, but several internal components do the critical work. The base plate provides the threaded connection and inlet openings. The gasket prevents an external oil leak at the mounting surface. The center tube supports the media and provides a path for cleaned oil to leave the filter.

Most lube spin-on filters also include a bypass valve. If the oil is very cold, unusually thick, or the filter media becomes restricted, the bypass valve can open to keep oil moving to the engine. Unfiltered oil is not ideal, but temporary oil flow is safer than oil starvation.

Many filters designed for certain mounting positions include an anti-drainback valve. This valve helps keep oil from draining out of the filter after shutdown. It can reduce dry-start time, especially when the filter mounts sideways or with the open end facing down. Whether a filter needs this valve depends on the engine design, so fitment specifications matter.

Spin-On Filter vs. Cartridge Filter

The practical difference is in the service process. With a spin-on filter, the full canister comes off during an oil change. With a cartridge filter, the housing stays on the engine and only the filter element, seals, and sometimes a drain plug are replaced.

Spin-on filters are often cleaner and quicker to change, provided there is enough access around the filter. They are common on older and newer domestic vehicles, light trucks, commercial equipment, and many industrial engines. Cartridge systems can reduce the amount of metal discarded at service, but they require careful installation of the element and O-rings. Overtightening a plastic filter cap or using the wrong seal can create problems.

Do not try to substitute one style for the other. A lube spin-on filter must match the engine's mounting thread, gasket dimensions, oil-flow requirements, bypass-valve setting, and physical clearance. A filter that looks close can still be wrong.

Why Correct Fitment Is More Than a Part Number

Oil filters are not universal. Two filters may have a similar diameter, similar thread, or nearly identical appearance, yet differ in ways that affect engine protection. The gasket may sit in a different location, the filter may be too tall for the available space, or its bypass valve may operate at a pressure that does not suit the engine.

Start with the year, make, model, engine size, and, when applicable, the vehicle's VIN or equipment serial number. Heavy-duty trucks, agricultural equipment, generators, and fleet vehicles may have engine-specific configurations that are not obvious from the outside. Diesel applications can be especially particular because oil capacity, operating conditions, and service requirements vary widely.

If you are replacing a filter from a vehicle that has changed hands or has an uncertain service history, do not rely only on the number printed on the old filter. Cross-reference the application. The old part could have been installed incorrectly during a previous service.

For commercial buyers, keeping verified filter numbers tied to each unit in the fleet reduces downtime and ordering errors. It also makes it easier to stock common maintenance parts before a scheduled service window.

When Should You Replace a Lube Spin-On Filter?

Replace the lube spin-on filter at every oil change unless the vehicle or equipment manufacturer specifically gives a different instruction. Installing fresh oil while leaving an old, loaded filter in place defeats much of the purpose of the service.

The right interval depends on the manufacturer's maintenance schedule, oil type, engine use, and operating conditions. A vehicle driven mostly on steady highway trips may be easier on oil than one used for short trips, towing, idling, stop-and-go delivery work, dusty job sites, or high-heat service. Fleet operators should also account for engine hours, not only miles, when maintaining equipment that idles or runs power take-off systems.

A filter is not a cure for neglected oil. Overextended oil can oxidize, lose additive protection, and build sludge even if the filter is still passing oil. Follow the recommended oil viscosity and service interval, then adjust within the manufacturer's severe-service guidance when the operating conditions call for it.

Installing a Spin-On Filter Correctly

A correct installation is simple, but details prevent leaks. Confirm the old gasket came off with the old filter. A gasket left behind can create a double-gasket condition, which may leak badly once oil pressure builds.

Before installing the new filter, apply a light film of clean engine oil to its rubber gasket. Thread the filter on by hand until the gasket contacts the mounting surface, then tighten it according to the instructions printed on the filter or provided by the vehicle manufacturer. Most spin-on filters should not be overtightened with a wrench. Excessive force can damage the gasket, deform the canister, or make the next service unnecessarily difficult.

After filling the engine with the correct amount of oil, start it and inspect the filter area for leaks. Shut the engine off, wait a few minutes, and verify the oil level again. Dispose of used oil and the old filter through an approved recycling program.

Choosing a Replacement Filter With Confidence

The lowest-priced filter is not always the lowest-cost maintenance decision. A dependable replacement should provide the correct fit, suitable filtration performance, a properly designed gasket, and the valve configuration the engine requires. For vehicles and equipment that see hard work, reliable fitment is worth more than saving a few dollars on an unknown part.

Carquest Premium and Carquest Standard filter options give buyers a practical way to match the filter choice to the application and maintenance budget. At Low Country Filters, the useful starting point is always the same: identify the exact vehicle or equipment application, confirm the filter number, and order enough filters to stay ahead of the next oil change. A correctly fitted lube spin-on filter is a small service item that helps protect one of the most expensive parts you own.
